Intel® Atom™ E3827 双核处理器无风扇工控机NISE 2410/2410E

NISE 2410/2410E

Intel® Atom™ E3827 双核处理器无风扇系统

•    主要特点

•    板载Intel® Atom™ E3827 双核处理器, 1.75GHz

•    双独立显示：DVI-I 和 HDMI

•    2 x Intel® I210IT GbE *** 接口支持 WoL, Teaming 和PXE功能

•    4 x USB 2.0 & 1 x USB 3.0

•    2 x Mini-PCIe 槽作为 mSATA/Wi-Fi/4G LTE/3.5G可选

•    2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control

•    支持 -20 ~ 70 摄氏度宽温

•    支持 9-30V 直流输入

产品介绍

由Intel® Atom™ Bay Trail 双核处理器 E3827, 1.75GHz组成，双核 Intel® Atom™ 处理器使 NISE 2410/2410E 可以听歌比之前的Intel® Atom™产品系列更出色和效率的运算性能。

NISE 2410/2410E 支持可达 8G DDR3L 内存和多个可选的存储设备，如 C-Fast, HDD, SSD 或 mSATA。 NISE 2410/2410E 配备 1 x HDMI, 1 x DVI-I, 2 x Gigabit *** 接口, 2x COM 接口支持 RS232/422/485 和 5x USB 接口包括1个 USB 3.0。 NISE 2410/2410E 支持 9 ~ 30V DC 输入，能稳定运行在-20 ~ 70 摄氏度的宽温环境。还支持2个 Mini-PCIe 模块，是物联网应用的(可选 GbE ***, Wi-Fi, 3.5G/4G LTE 模块) 和可选现场总线模块的工厂自动化应用的出色平台 。其扩展的多功能性使 NISE 2400 成为工厂自动化和M2M智能运算应用的***平台。

产品规格

CPU    Onboard Intel® Atom™ E3800 processor family

- E3827 Dual Core, 1.75GHz for NISE 2410

- E3845 Quadl Core, 1.91GHz for NISE 2410ESupport Intel® Atom™ E3800 processor family from single core E3815, dual core E3825/E3826/E3827 and quad core E3845 with differenceS KUs

内存    2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

显示选项    Dual independent display

- HDMI and DVI-I

- HDMI and VGA (via DVI-I connector)

前面板I/O 接口    ATX power on/off switch1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x *** LEDs2 x DB9 RS232 for COM3 & COM41 x External CFast socket1 x SIM card holder1 x USB 3.0 (900mA per each)1 x Mic-in & 1 x Line-out2 x antenna holes for optional Wi-Fi/3.5G antenna

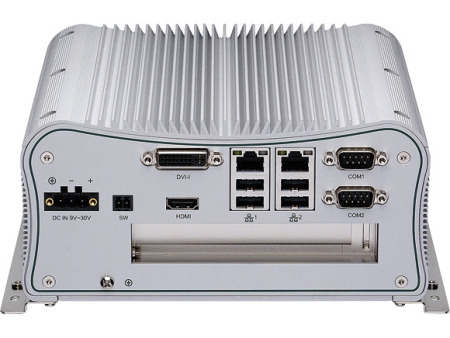

后面板 I/O 接口    4 x USB 2.01 x DVI-I display output1 x HDMI display output1 x remote power on/off switch2 x Intel® I210IT GbE *** ports, support wake on ***, Teaming and PXE2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control

- Jumper-free setting on RS232/422/4851 x 3-pin DC input, support +9 to 30VDC input

内嵌 I/O 接口    4 x GPI and 4 GPO (5V, TTL Type)

存储设备    1 x CFast card socket (SATA 2.0)1 x 2.5" HDD space (SATA 2.0)1 x mSATA from miniPCI socket if SATA HDD is not installed

扩展槽    2 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5GNISE 2410: One PCI Expansion

- Add-on card length: 176mm max.

- Power consumption: 10W/ slot max.NISE 2410E: One PCIe x4 Expansion (only support PCIex1 & signal)

- Add-on card length: 176mm max.

- Power consumption: 10W/ slot max.

电源需求    Power input: +9Vdc to +30Vdc1 x optional 24V, 60W power adapter

体积    195mm (W) x 200mm (D) x 90mm (H) without wall-mount bracket

机械构造    Aluminum and metal chassis with fanless design

环境    Operating Temperature:

Ambient with air flow: -20°C to 70°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -30°C to 85°CRelative humidity: 10% to 95% (non-condensing)Shock Protection:

HDD: 20G, half sine, 11ms, IEC60068-2-27

CFast: 50G, half sine, 11ms, IEC60068-2-27Vibration Protection w/ HDD Condition:

Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64

Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6Vibration protection w/ CFast & SSD condition:

Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64

Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6

通过认证    CEFCC Class A

支持操作系统    Windows 8, 32-bit/64-bitWindows Embedded Standard 8, 32-bit/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitLinux Kernel version 3.8.0
